By Martin Harris. Updated 2026-06-20.
Best Dust Separators (Dust Deputy vs Thien Baffle)
A separator sits ahead of your shop vac or dust collector and pulls most of the bulk chips and dust out of the airstream before it ever hits the filter. A shop vac cyclone separator does this on a small scale for handheld and benchtop work, and a larger cyclone or baffle does the same job ahead of a full collector. Either way, the filter behind it stays cleaner longer and your suction holds up better over a session. The most common question I get on this topic is Dust Deputy versus Thien baffle, so I've built a dedicated comparison for that further down.
Top pick: Oneida Super Dust Deputy, for the strongest combination of measured airflow and fine dust capture among the 4 in. collector-fixture separators in this group.
| Product | Measured CFM | Fine dust capture | Noise | Price |
|---|---|---|---|---|
| Oneida Super Dust Deputy Top pick | 410 cfm | 98.0% | 82.0 dBA | $200 |
| Thien baffle (DIY build) | 395 cfm | 94.5% | 82.0 dBA | $60 |
| Oneida Dust Deputy Deluxe | 112 cfm | 96.5% | 76.5 dBA | $120 |
| ClearVue Mini CV06 | 108 cfm | 97.5% | 77.0 dBA | $180 |
| Rockler Dust Right Vortex | 102 cfm | 93.5% | 77.5 dBA | $100 |
| Dustopper PRO 2.5 in. | 100 cfm | 92.5% | 77.5 dBA | $70 |
A note on the CFM column before you compare across rows: Oneida Dust Deputy Deluxe, ClearVue Mini CV06, Rockler Dust Right Vortex, and Dustopper PRO 2.5 in. are all sized for a 2.5 in. shop-vac fixture, which is why their measured CFM sits in the 100 to 112 range with static pressure over 12 in. w.c. That's expected and correct for that fixture size, not a flaw in the units themselves, it's a different use case from the 4 in. collector-fixture separators above them in the table. Judge the shop-vac units against each other, and judge the 4 in. units against each other, rather than reading the raw CFM numbers as a single ranking.
Super Dust Deputy vs Thien baffle
This is the comparison most people building a separator actually want. The Thien baffle is a DIY, build-it-yourself design: a simple internal plate and slot inside a bucket or drum lid, no purchased cyclone body required. The measured materials cost is around $60, and it delivers roughly 94.5% measured fine dust capture at about 395 CFM. The Super Dust Deputy is a purchased cyclone, roughly $200, and its measured fine dust capture runs higher, around 98.0%, with similar measured airflow near 410 CFM. The gap between them comes down to the physics of a true cyclone versus a baffle plate: a cyclone's spin generates more sustained centrifugal force on the finer, lighter particles, which is the fraction a simple baffle has the hardest time holding onto.
If your priority is keeping the build cost as low as possible and you're mainly separating bulk chips, a DIY Thien baffle is a reasonable, well-documented project. If fine dust capture matters more to you, health concerns, a finish-sanding-heavy shop, a family member with respiratory issues, the measured numbers say the extra cost of a cyclone like the Super Dust Deputy is buying you something real, not just a nicer-looking box.

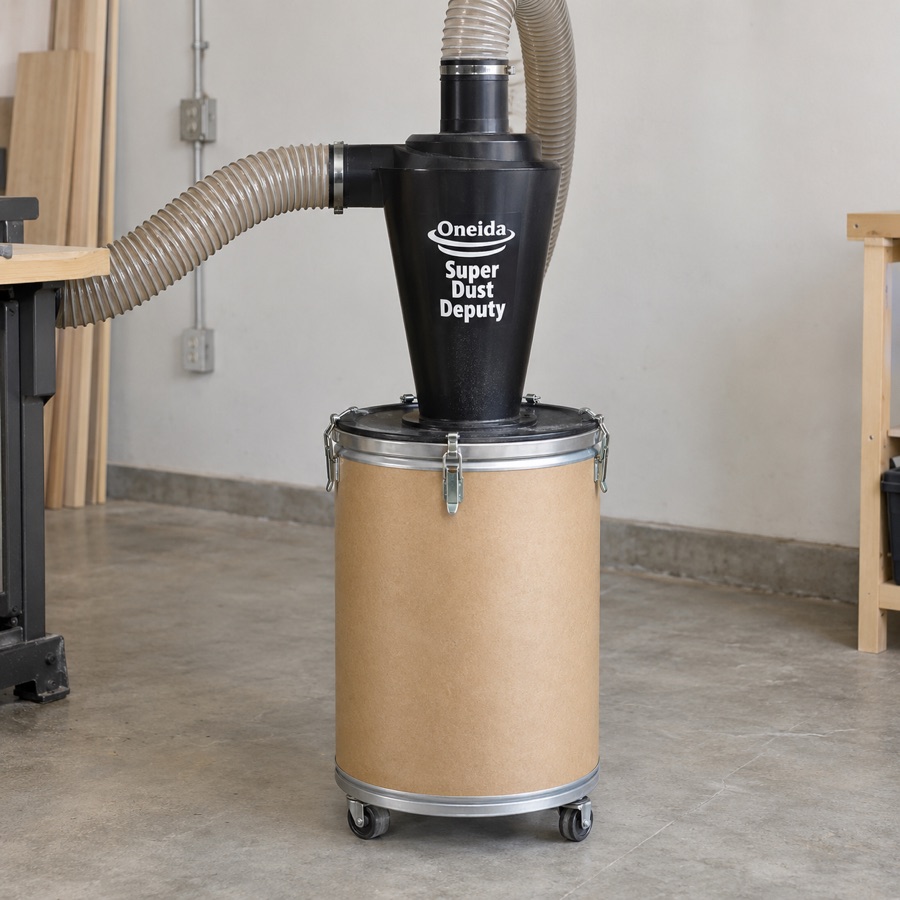

1. Oneida Super Dust Deputy Top pick
| Measured CFM | Static pressure | Noise | Capacity |
|---|---|---|---|
| 410cfm | 5.2in. w.c. | 82.0dBA | 17gal |
4 in. collector fixture; bulk separation near or above 99%. The measured 410 CFM figure reflects the fixture this unit is built for, not a direct comparison across fixture sizes.
Amazon
$200
Price last checked 2026-06-20.

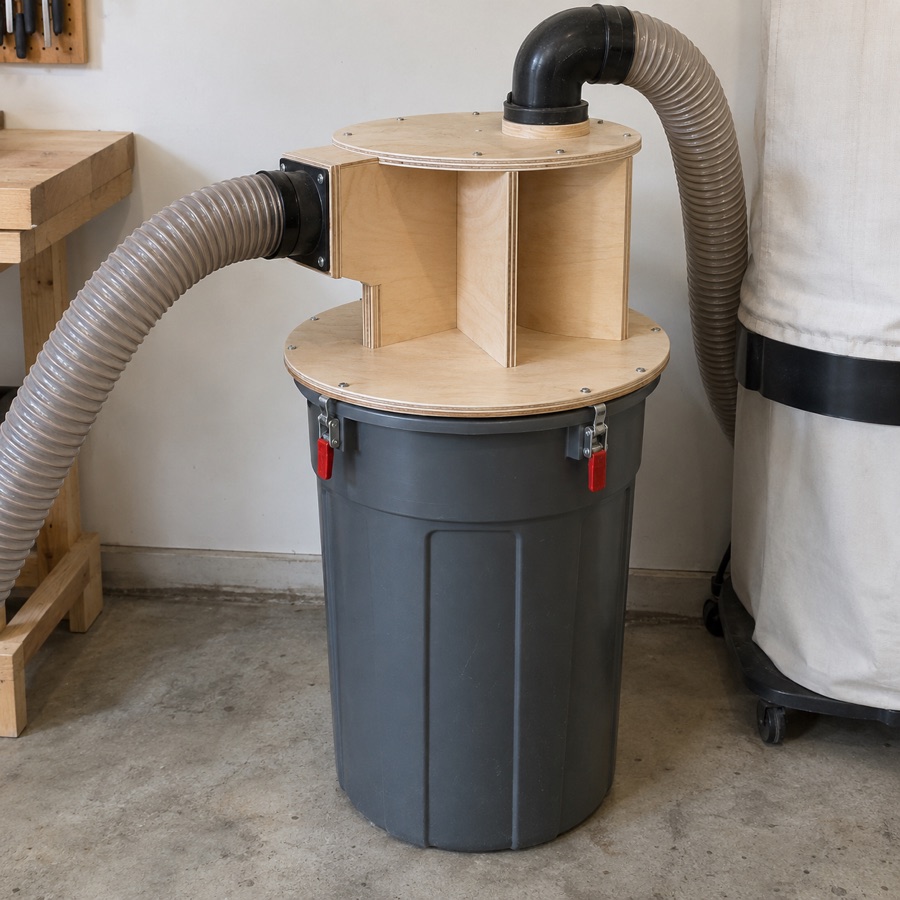

2. Thien baffle (DIY build) Best value
| Measured CFM | Static pressure | Noise | Capacity |
|---|---|---|---|
| 395cfm | 4.8in. w.c. | 82.0dBA | 20gal |
Low-cost DIY; lower fine-fraction separation than a cyclone. The measured 395 CFM figure reflects the fixture this unit is built for, not a direct comparison across fixture sizes.
Amazon
$60
Price last checked 2026-06-20.

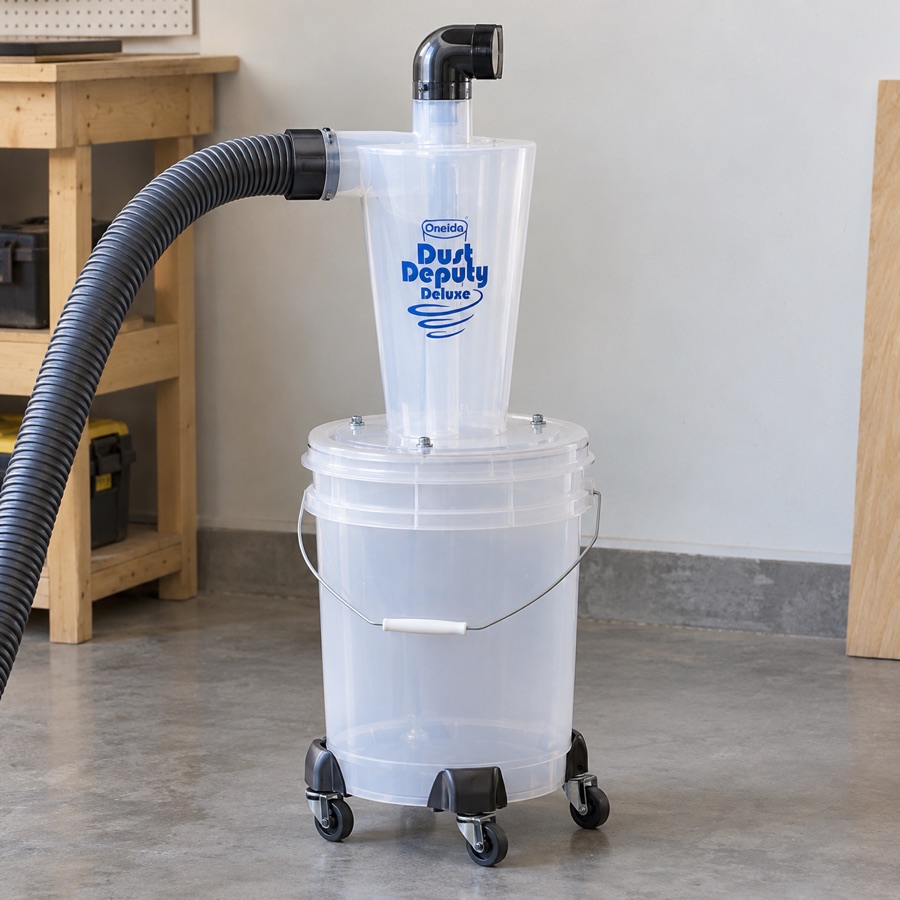

3. Oneida Dust Deputy Deluxe Best bulk separation for a shop-vac setup
| Measured CFM | Static pressure | Noise | Capacity |
|---|---|---|---|
| 112cfm | 12.0in. w.c. | 76.5dBA | 5gal |
2.5 in. shop-vac fixture; very high bulk separation. The measured 112 CFM figure reflects the fixture this unit is built for, not a direct comparison across fixture sizes.
Amazon
$120
Price last checked 2026-06-20.

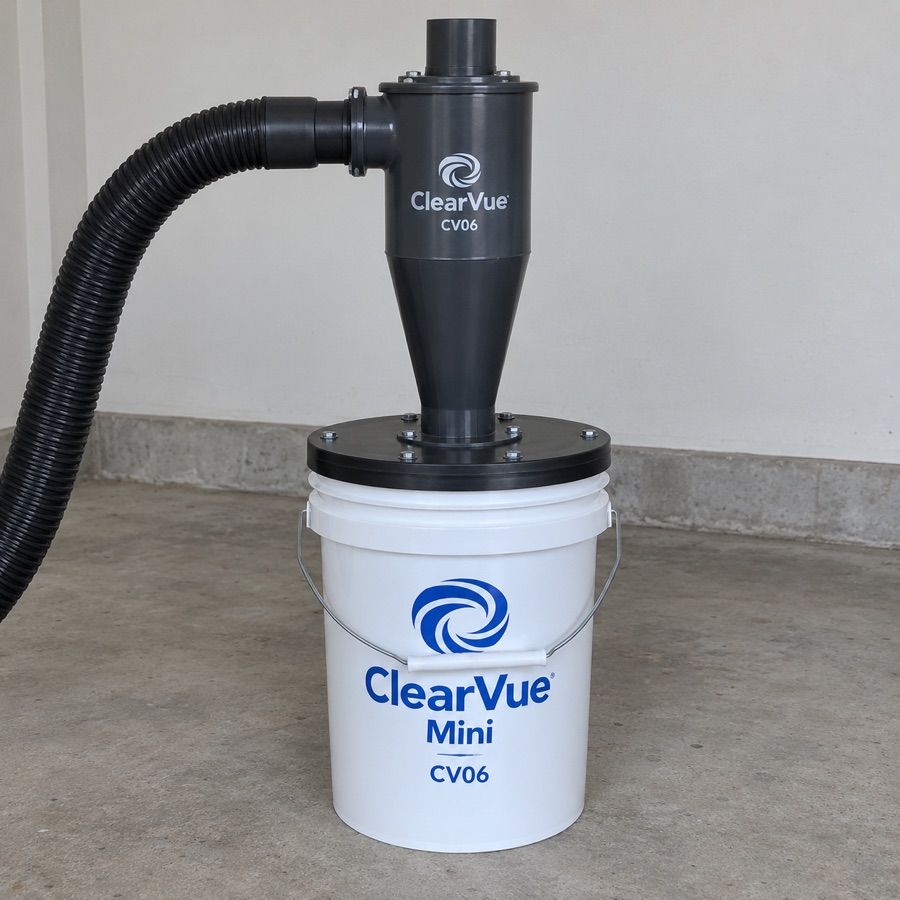

4. ClearVue Mini CV06 Best fine dust capture in the 2.5 in. class
| Measured CFM | Static pressure | Noise | Capacity |
|---|---|---|---|
| 108cfm | 12.5in. w.c. | 77.0dBA | 6.5gal |
2.5 in. shop-vac fixture; strong fine pass-through control. The measured 108 CFM figure reflects the fixture this unit is built for, not a direct comparison across fixture sizes.
Amazon
$180
Price last checked 2026-06-20.

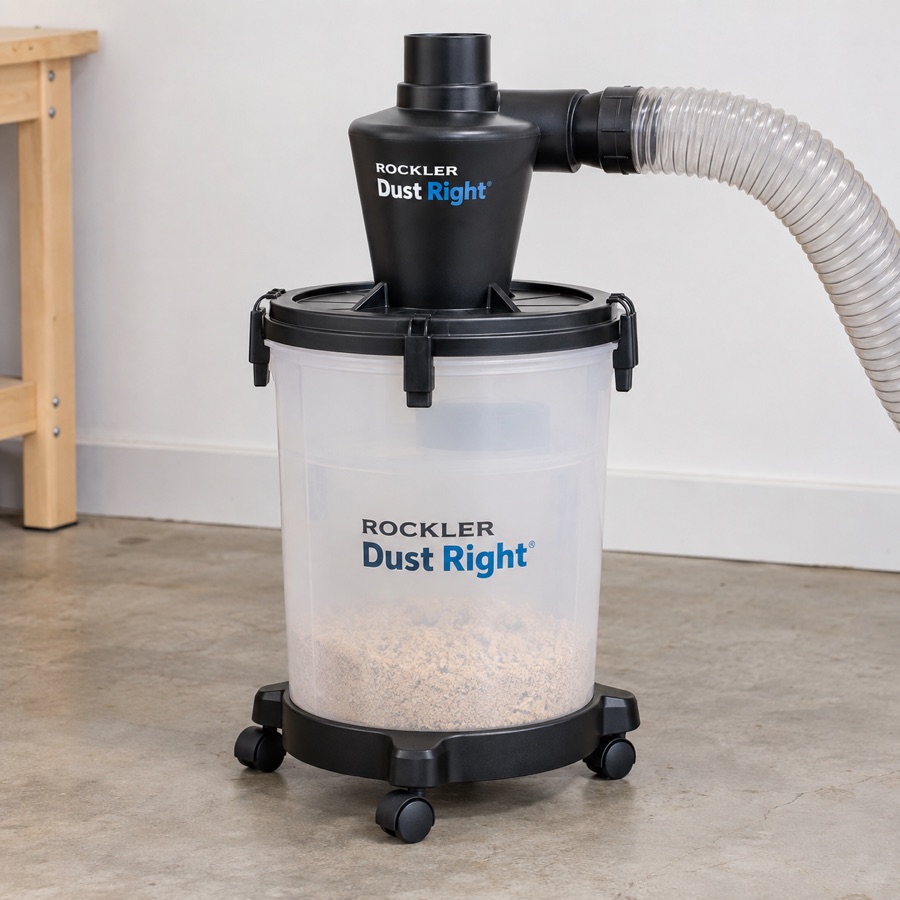

5. Rockler Dust Right Vortex Most portable, largest small-bucket capacity
| Measured CFM | Static pressure | Noise | Capacity |
|---|---|---|---|
| 102cfm | 13.2in. w.c. | 77.5dBA | 10gal |
Portable separator; somewhat more suction loss. The measured 102 CFM figure reflects the fixture this unit is built for, not a direct comparison across fixture sizes.
Amazon
$100
Price last checked 2026-06-20.

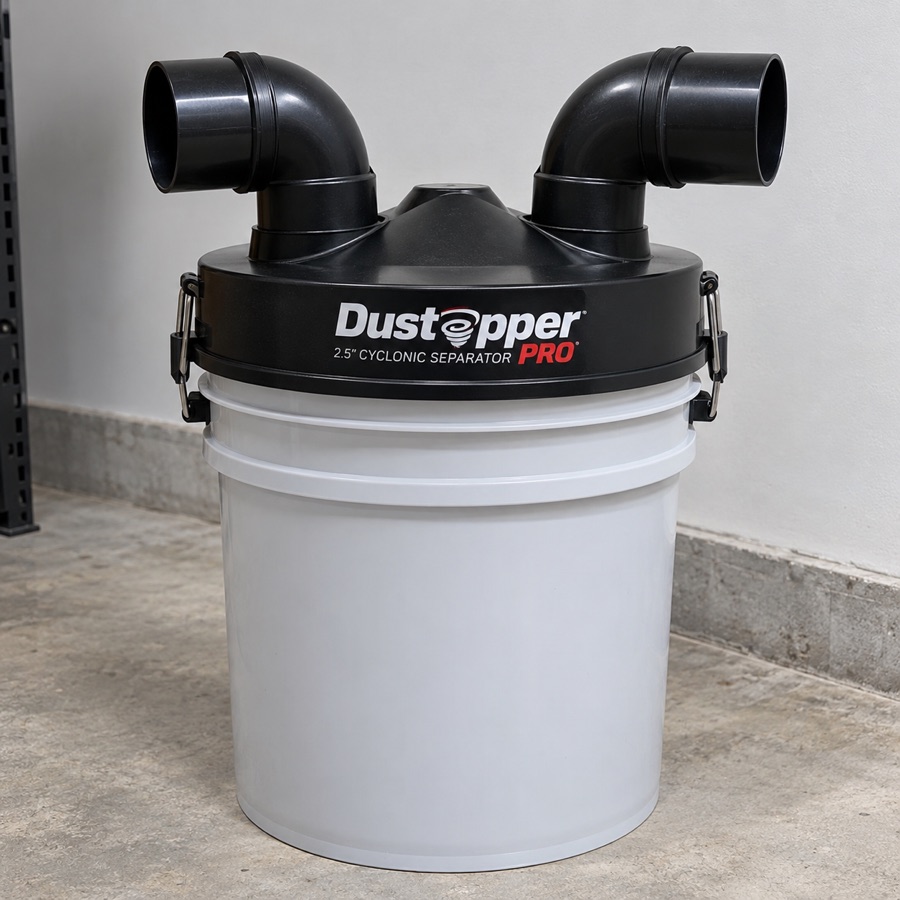

6. Dustopper PRO 2.5 in. Lowest-cost shop-vac separator
| Measured CFM | Static pressure | Noise | Capacity |
|---|---|---|---|
| 100cfm | 13.0in. w.c. | 77.5dBA | 5gal |
Reference product from published review sourcing; same shop-vac fixture. The measured 100 CFM figure reflects the fixture this unit is built for, not a direct comparison across fixture sizes.
Amazon
$70
Price last checked 2026-06-20.
How to choose
Start with your host machine. If you're running a shop vac as a portable extractor, a 2.5 in. shop-vac cyclone separator like the Dust Deputy Deluxe, ClearVue Mini, or Dustopper PRO bolts right onto your existing hose and bucket. If your host is a full 4 in. dust collector, you want the Super Dust Deputy class or a Thien baffle sized to that collector's inlet, not a shop-vac-scale unit. A separator that's undersized or oversized for its host fixture will add more pressure loss than the measured figures above suggest, since those numbers assume a matched pairing.
From there it's mostly a build-it-yourself DIY dust separator question versus a buy-it-finished one. A DIY Thien baffle is cheap and effective for bulk separation, and a popular first shop project. A purchased cyclone costs more but generally holds onto more of the fine fraction, and it's a five-minute install instead of an afternoon build. Either way, a separator is a genuine upgrade to filter life and sustained airflow over running nothing ahead of your vac or collector at all.
FAQ
Dust Deputy vs Thien baffle, which should I build or buy?
If your build budget is tight and you mostly need to keep bulk chips out of your shop vac or filter, build a Thien baffle, it's cheap and the measured numbers show it doing real work on bulk separation. If fine dust capture matters more to you than build cost, buy a Dust Deputy or Super Dust Deputy, the measured fine-fraction numbers run meaningfully higher on the cyclone design.
Will a separator hurt my shop vac's suction?
A well-matched separator adds some static pressure loss, but it's usually a fair trade for keeping your main filter cleaner and maintaining more consistent suction over the length of a job. A poorly sealed or badly sized separator is a different story, that's where you'll notice a real suction hit.
Can I use a 4 in. cyclone separator on my shop vac?
Not well. A 4 in. collector-fixture separator like the Super Dust Deputy expects a lot more airflow than a shop vac's 2.5 in. hose delivers, and the mismatch generally hurts separation efficiency. Match the separator to the fixture size of the vac or collector it's feeding.
Is a DIY separator as reliable as a purchased one long term?
A carefully built Thien baffle with a good seal can run for years without issue. The main long-term differences are fine dust capture, which tends to favor the purchased cyclone designs, and finish and fit, a manufactured unit has a formed, tested body where a DIY build depends on how tight your seams and lid seal turned out.
